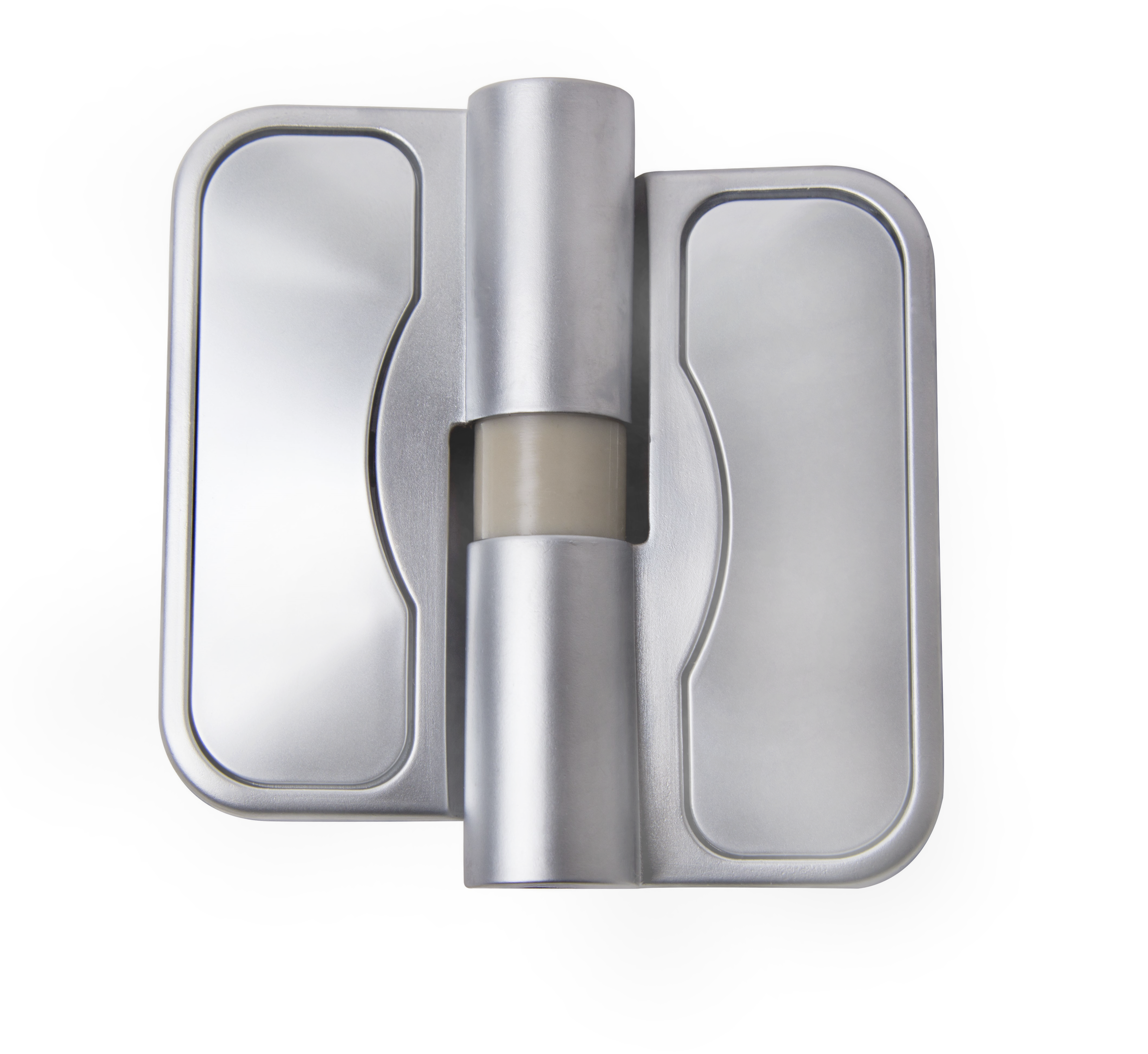

EM-B-003 MODA_GRAVITY_ANMB

EM-B-003 MODA_GRAVITY_ANMB
Material: Diecast Zinc, Alloy ZP3, Brass Shaft, Nylon Inserts, ABS Snap-On Covers
Finish: Antimicrobial Coating
Mounting: Concealed Screw Fix or Bolt Through
Features:

• The step on the back of the hinge plus an increased vertical nylon drop allows for better movement from the gravity function.
• The nylons are set so the door can move past 90° whilst still functioning correctly.
• The nylon cover on the barrel keeps foreign substances from penetrating the pins and nylons allowing for a smoother opening and closing.
• Interchangeable hinge covers including Moda Spring Hinge.
• The fixing holes correlate with the bolt-through faceplates making installation a breeze.
• Reversible Hold Open / Hold Closed
• Lift off capability
• Load Rating
• 15Kg per hinge

For optimum performance -
* 2 hinges per door up to 30Kgs
* For doors over 30Kg allow for 15Kg per hinge
Note: 3 Hinges per door is recommended to prevent door bowing
