Washroom Accessories
Toilet Cubicle System
EM-B-006 106C ANMB

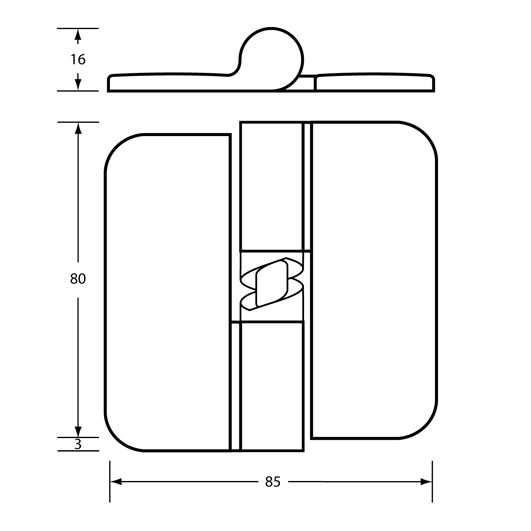

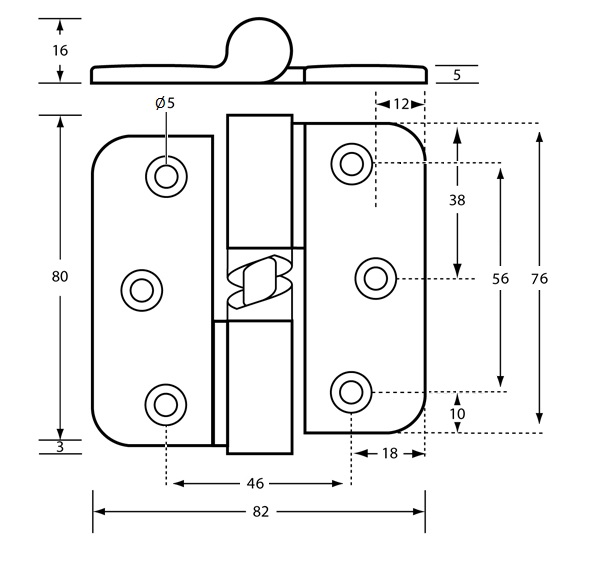

106C Gravity Hinge in Antimicrobial
EM-B-006 106C ANMB
Material: Diecast Zinc, Alloy ZP3, #304 Stainless Steel Shaft, Nylon Inserts, ABS Snap On Covers
Finish: Antimicrobial
Mounting: Concealed Screw Fix or Bolt Through
Features:
* 2 hinges per door up to 30Kgs
* For doors over 30Kg allow for 15Kg per hingeNote: 3 Hinges per door are recommended to prevent door bowing
Notes : For Bolt Through use 106C_FACEPLATE Concealed Fix Face Plate (Available in Satin Chrome Plate, Bright Chrome Plate and Satin Nickel Plate)
Material: Diecast Zinc, Alloy ZP3, #304 Stainless Steel Shaft, Nylon Inserts, ABS Snap On Covers
Finish: Antimicrobial
Mounting: Concealed Screw Fix or Bolt Through
Features:
- Gravity-assisted door opening with lift-off capability.
- Minimum Hinge Clearance For Lift-Off Hinges 30mm
- Load Rating: 15Kg per hinge
* 2 hinges per door up to 30Kgs
* For doors over 30Kg allow for 15Kg per hingeNote: 3 Hinges per door are recommended to prevent door bowing
Notes : For Bolt Through use 106C_FACEPLATE Concealed Fix Face Plate (Available in Satin Chrome Plate, Bright Chrome Plate and Satin Nickel Plate)
