EM-B-008 106C_SCP

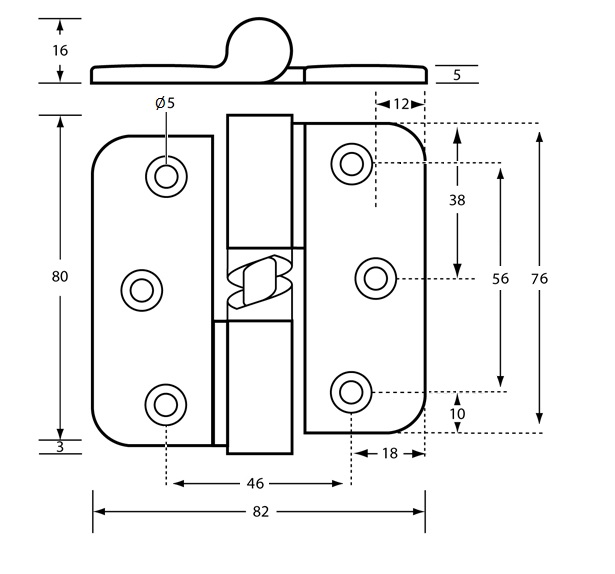

106C Gravity Hinge in Satin Chrome Plate
EM-B-008 106C_SCP
Material: Diecast Zinc, Alloy ZP3, #304 Stainless Steel Shaft, Nylon Inserts, ABS Snap On Covers
Finish: Satin Chrome Plate
Mounting: Concealed Screw Fix or Bolt Through
Minimum Hinge Clearance For Lift-Off Hinges 30mm
Features:
* 2 hinges per door up to 30Kgs
* For doors over 30Kg allow for 15Kg per hinge
Note: 3 Hinges per door is recommended to prevent door bowing
Material: Diecast Zinc, Alloy ZP3, #304 Stainless Steel Shaft, Nylon Inserts, ABS Snap On Covers
Finish: Satin Chrome Plate
Mounting: Concealed Screw Fix or Bolt Through
Minimum Hinge Clearance For Lift-Off Hinges 30mm
Features:
- Gravity-assisted door opening/door closing with lift-off capability.
- Load Rating : 15Kg per hinge
* 2 hinges per door up to 30Kgs
* For doors over 30Kg allow for 15Kg per hinge
Note: 3 Hinges per door is recommended to prevent door bowing
